01 / System
Filtration
The cartridge and housing need access for cleaning or replacement. Ask where they sit and what the routine requires.
The system beneath the shell
What is inside a cold plunge?
A basin is only the visible part. This illustrative assembly helps you ask better questions about filtration, cooling, access, maintenance and repair before choosing a product.
Interactive system studyGeneric example / not a product review

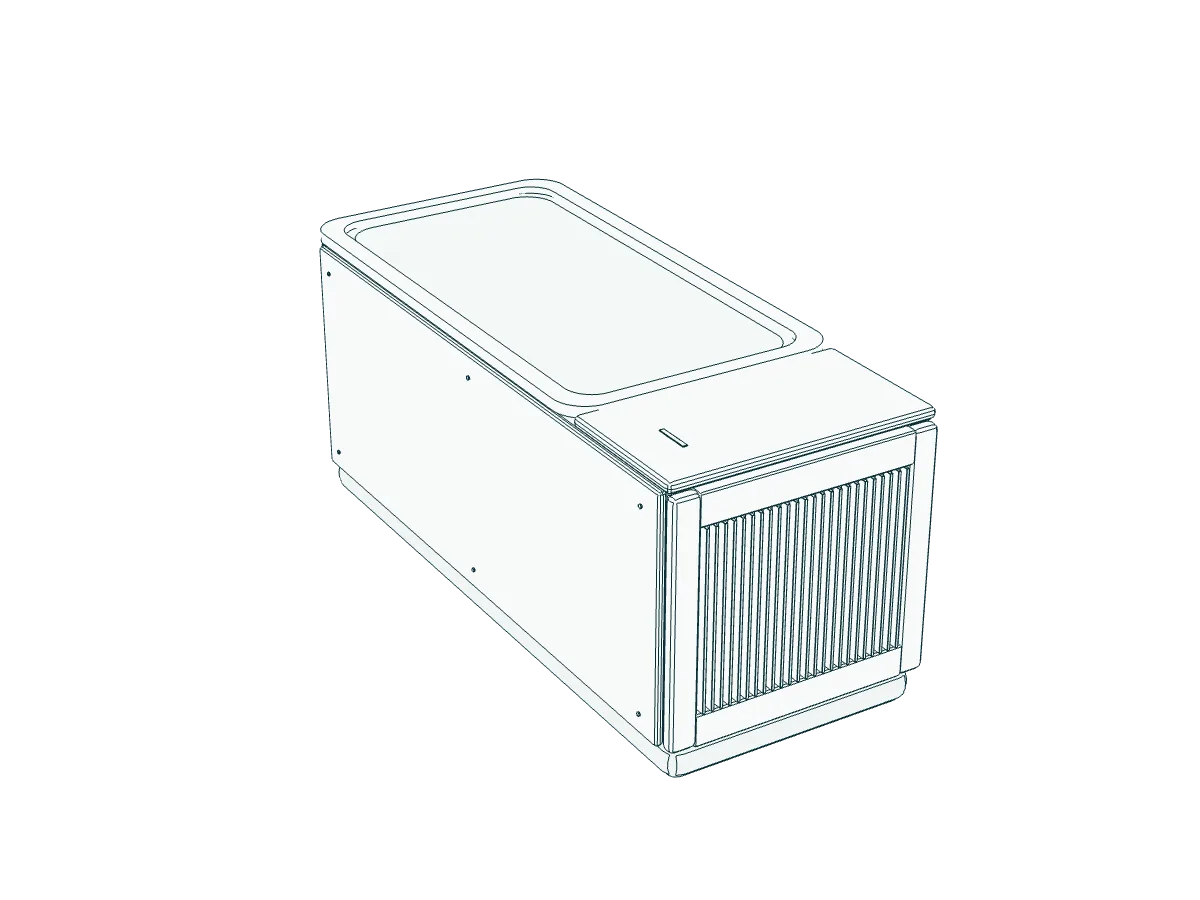

The system beneath the shell
A basin is only the visible part.
Scroll to separate the systems.

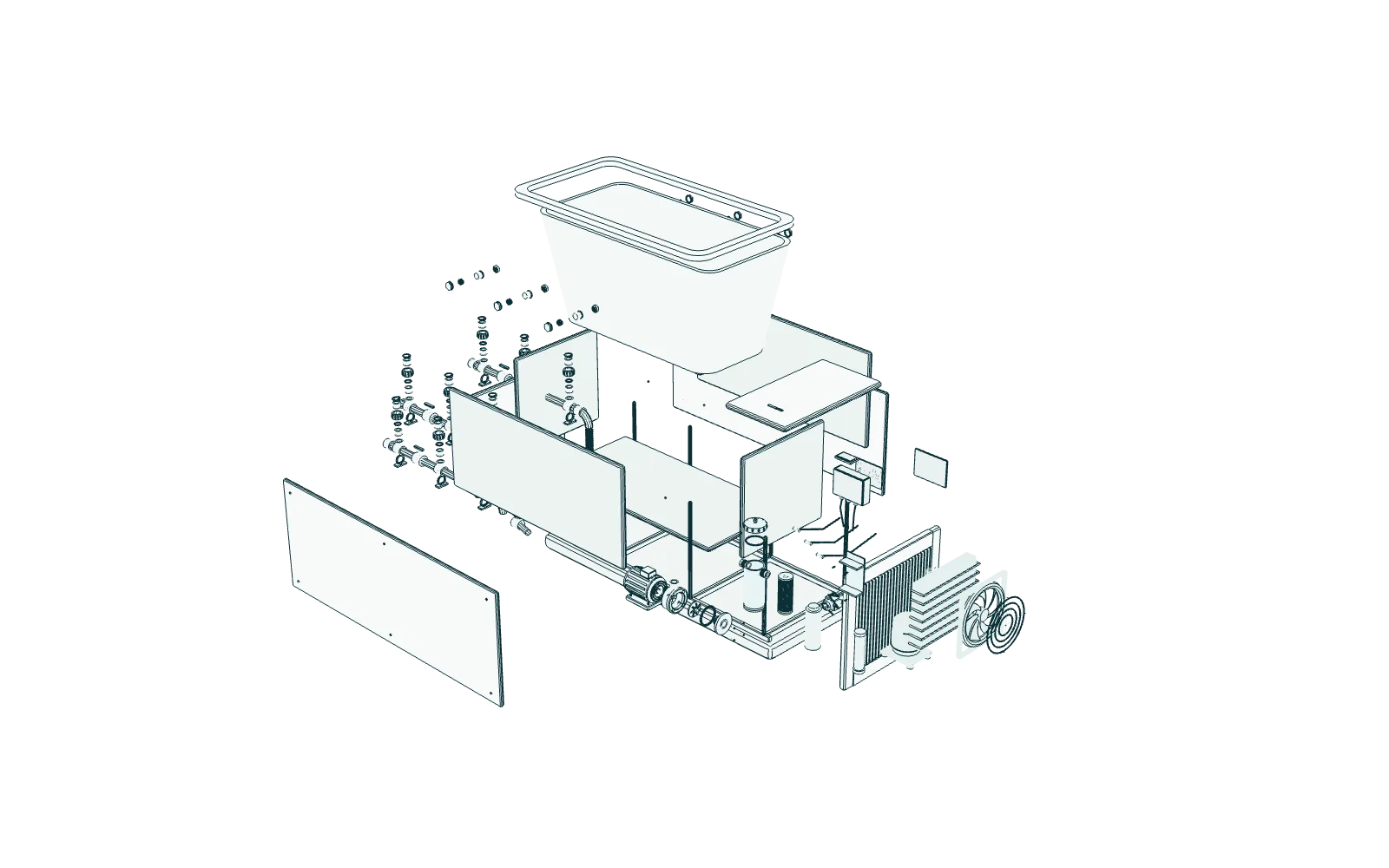

Separate the systems
See each system at a useful scale.
Separation shows pieces for explanation; it does not describe a connection, repair sequence or exact product.
Take this into your research
Make the invisible questions visible.
Ask a vendor to show the filter location, service panels, parts path and written coverage for the exact configuration you are considering.
The complete 3D model loads only when you choose it. The system guides below work without it.
Six questions behind the finish
Look at the whole system.
Open the relevant component model, then follow its guide for the buying or ownership question it raises.
02 / System
Circulation
A pump moves water through the system. Identify which parts are replaceable and who would diagnose a flow problem.
03 / System
Cooling
Cooling equipment needs ventilation, power and a repair path. Compare service access along with temperature claims.
04 / System
Plumbing
Unions, valves and seals connect the pieces. Their position affects isolation, drainage and the work required for service.
05 / System
Controls
The interface is only the visible part. Ask who diagnoses sensors, wiring or control faults and how those parts are supplied.
06 / System
Cabinet and access
Panels and clearances determine what can be reached after installation. A warranty is only useful when the service path is workable.
Dedicated component models
See each system at a useful scale.
Choose a system to inspect its housings, fittings and working parts. Each component model loads separately, so a closer look does not require the whole assembly.
These are isolated conceptual assemblies. Separation shows pieces for explanation; it does not describe a connection, repair sequence or exact product.

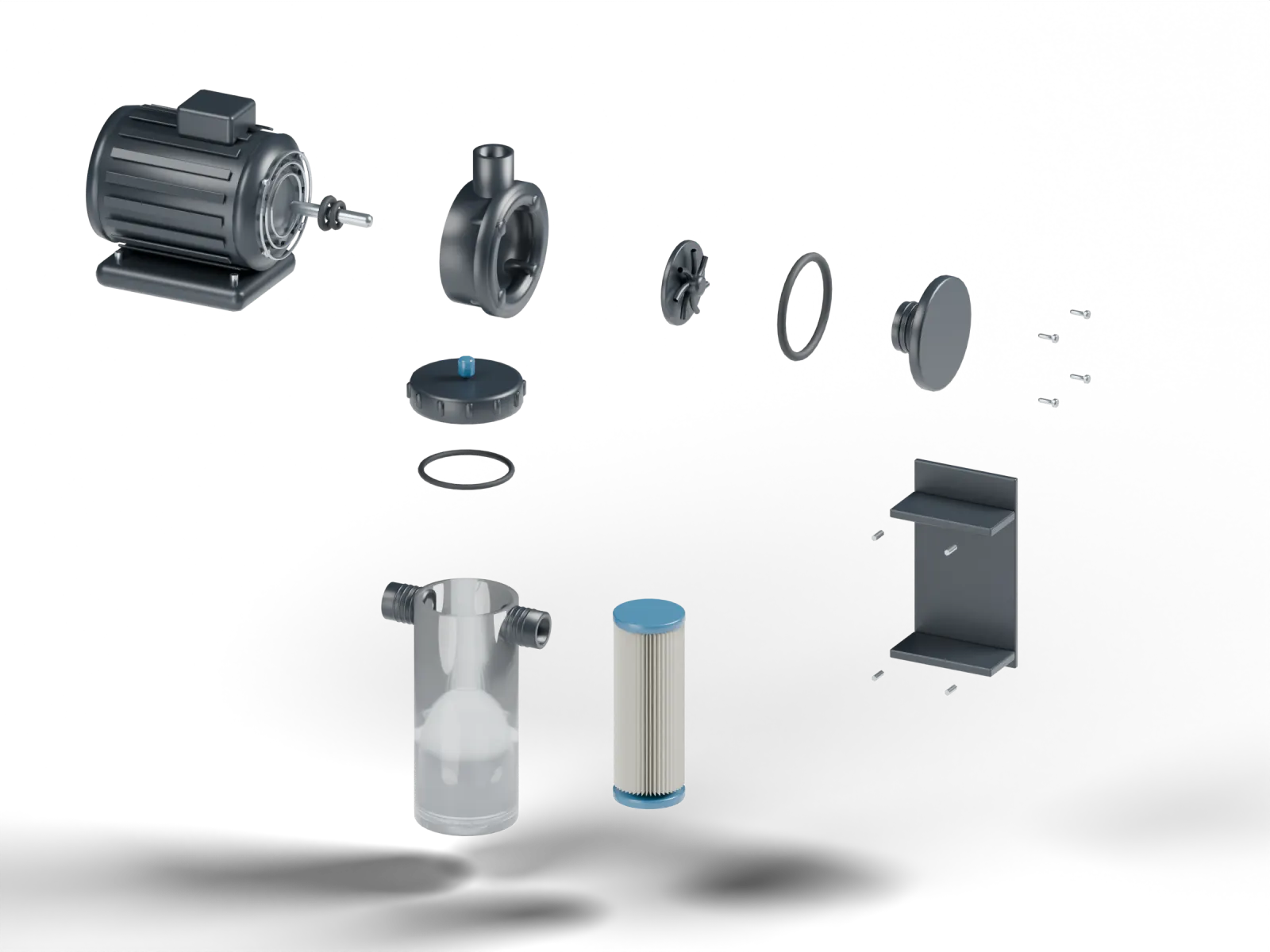

Pump & filter
This is a conceptual integrated plunge, not a manufacturer drawing, a universal equipment layout, a failure analysis or a guide to making repairs. Components, fitting counts, access and service terms differ by model. Follow the exact product manual and qualified service advice.
Take this into your research
Make the invisible questions visible.
Ask a vendor to show the filter location, service panels, parts path and written coverage for the exact configuration you are considering.
Open the vendor question list
